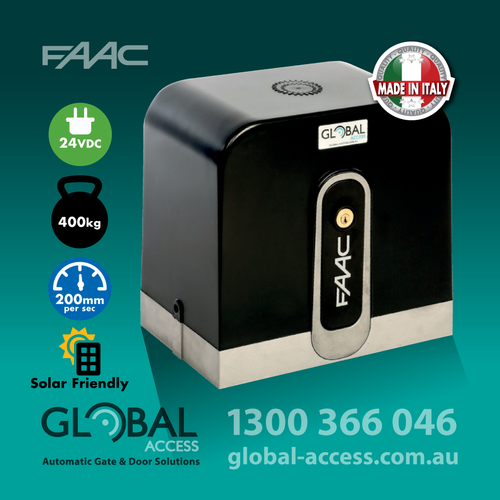

FAAC C721 24V ELECTRIC SLIDING GATE MOTOR

The FAAC C721 24V Low-voltage gearmotor is suitable for residential sliding gates with max weight of 500Kg.

• Adjustable Open & Closing Speed
• Virtual Encoder for reversal
• Direct Drive & Easy Manual Release
• New reduction principle with mobile axis (FAAC patent)
• Capable of Continuous use
• Electronic control board with anti-crushing device and virtual encoder with reversing function when detecting an obstacle
• Magnetic limit stops
• Vibration and noise reduction
• Optional Transformer in separate box available when poser source is at a distance from the motor
• Optional Backup Battery 6049-0373
• Solar Friendly – Optional Solar Kit is available

Height to top of Pinion: Z28 = 123mm

Model Variants Available:
• 24v Sliding Gate Motor, 1 x Two Channel Receiver, 2 x 2-button Long Range Hand Transmitters, E721 Control Board
• 24v Sliding Gate Motor, Transformer in Separate Enclosure, 1 x Two Channel Receiver, 2 x 2-button Long Range Hand Transmitters, E721 Control Board

Optional Extras:
• Battery Backup for emergency egress: 6049-0373
• FAAC XP20 Wireless Photo Beams: 1059-0011
• FAAX XT2 (6049-0328) and XT4 (6049-0329) Transmitters
• Solar battery Input Lead – connect your solar battery setup directly to the E124 control board battery input: 1062-0023

NOTE:
• Gate requires a bottom rail of at least 100mm x 50mm
• Not suitable for gates on an incline!
• Bulk purchase quantity discounts apply, POA
