TOUSEK TPS 6 & TPS 10 SPEED 230v – Electric Sliding Gate Motors

This premium quality TOUSEK TPS6 + TPS10 230V sliding gate motors are suitable for gates weighing up to 1000Kg. The TPS range are european (Austrian) designed and manufactured oil-bath gearbox operator like no other when it comes to design and quality of build!

We are currently out of stock of the TPS6 + TPS 10 variations at this time, and apologise for any inconvenience.

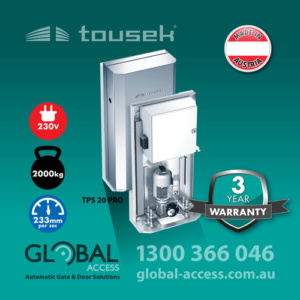

Available is the TPS 20 + TPS 20 PRO sliding gate motors, the big brothers if you will.
For alternative product, please feel free to contact us on 03 9785 2566.

The TPS SPEED range of FAST Sliding Gate Motors is the ultimate in premium European designed an manufactured automation.

Designed an manufactured in Austria by Tousek, there is no other gate automation product available that is manufactured at such a high quality standard and durability level in the World!

The TPS 6 is able to drive a gate weighing a maximum of 6ooKg, whilst the TPS 10 is able to drive a gate up to 1,000Kg maximum weight.

ADVANTAGES AT A GLANCE:

• Absolute encoder
• Suitable for heavy duty use (100% duty cycle)
• Powder-coated Aluminium Cover
• Large, illuminated LC -Display (2×16 characters)
• Clear text menu programmable through four buttons
• Operation mode is selectable (impulse, automatic, deadman)
• Free adjustable partial opening for pedestrians or car/truck function
• Distance measurement via absolute encoder (without limit switches), NO need to learn cycles after power failure or having been in manual operation
• Adjustable soft-stop for open/close functions, controlled by frequency converter
• Adjustable speed settings for open/close functions
• Electronic monitoring of the emergency release
• Mechanical brake for safe gate stop
• Input for rear area monitoring
• Status display for safety and button inputs
• DIN rail for accessory fitment(60mm and 130mm)
• 1.5Ah accessory power supply

OPTIONAL EXTRAS:
• External gate status display (eg: for concierge) #1018-0087
• Courtyard lamp (230V, 111W) #1044-0014

RECOMMENDATIONS:
• We recommend the use of our exclusive; Heavy Duty 1200Kg Nylon Rack (Steel Inserts)

IMPORTANT NOTE:
• Kits do not contain radio gear or remotes – TOUSEK Radio Kit
• Only One (1) optional genuine Tousek module can be fitted to the control board
• Ground stops required
